mavis@xizeindustry.com Classification of performance:
EP fabric or ST steel cord
Structure:
Cut edge/ Mould edge
Characteristics:
Small elongation, large conveying capacity, stable operation convenient maintenance and good adaptability to the bulk material.
Standards:
Can be manufactured following various fabric standards: GB/T7984, GB/T10822, HG3714, HG3782, DIN22102, SABS, BS 490, AS1332, JIS 6322, RMA.
Specification:
| Belt Type | Carcass | Fabric Type | Rubber cover thickness(mm) | Width Range (mm) | |
| Top rubber | Bottom rubber | ||||
| Normal Type | EP Belt | EP100~EP400 | 1.5~6.0 | 1.5~6.0 | 400-2200 |
| NN Belt | NN100~NN400 | ||||
| Cotton belt | CC56 | ||||
| Reinforcement Type | EP Belt | EP100~EP400 | |||
| NN Belt | NN100~NN400 | ||||
| Cotton belt | CC56 | ||||
| Steel cord Belt | ST630-ST5000 | ||||
Application:

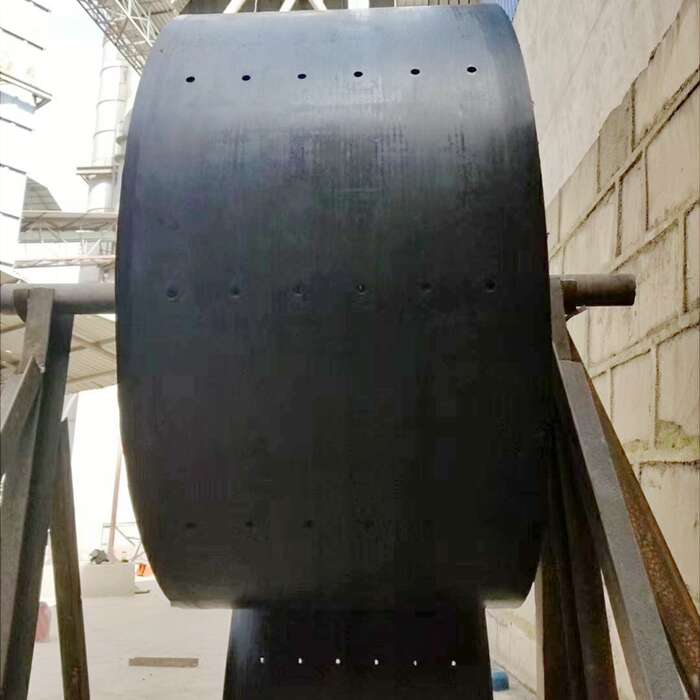

Bucket elevator conveyor belt for bucket elevator vertical transportation of materials. Widely used in building materials, mining ,chemical industry, light industry , machinery electricity, food and other departments of the ordinary or the normal environment of vertical material transportation.
